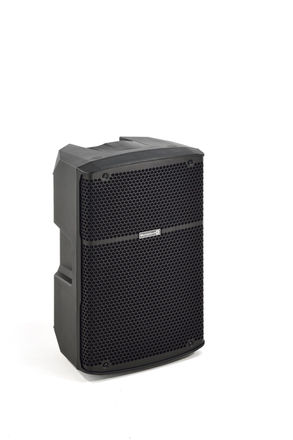

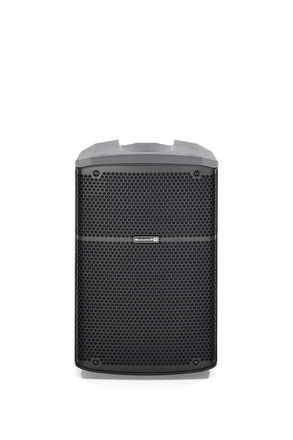

Montarbo B110
B-Series
Description.
The Montarbo B110 is a bass-reflex cabinet is equipped with a 10” woofer and a 1.35 ”compression driver boosted by a 400 W amp module.
B series’ advanced DSP featuring FIR filters allows a smooth audio performance as well as an impressive dimension/sound pressure level up to 126 dB.
B series speakers feature 3 input channels (Mic/line, Line, Bluetooth) with independent levels. Bluetooth devices can be easily connected thanks to the on-board “PAIR” button.
Moreover, 4 different on-board presets allows users to optimize the audio performance for the application in use.

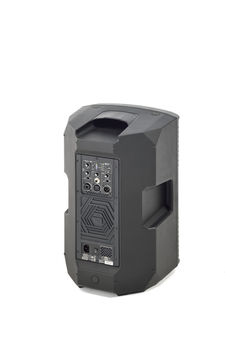

A clean design integrates 3 handles and rigging points for fixed installation to the lightweight polypropylene cabinet which also allows horizontal stage monitor use, thanks to a 40° inclination of 2 sides of the box (a dedicated preset wedge EQ is selectable on board). The flange for pole fixing on the bottom of the box allows users to choose a 0° or a 7.5° inclination of the cabinet placed on a standard 35 mm tripod.
Covers for transport and weather protection are available as accessories for every model in Montarbo B series.
Key Features.
Speaker Type - 2-way Active bass reflex
Frequency Response [-10 dB] - 60 Hz - 20 kHz
Max SPL - 126 dB
HF - 1.35" driver
LF - 10" - 2" VC
Dispersion - 90° H x 60° V
Crossover Frequency - 1.8 kHz
Amp Class - D + A/B
RMS Power - 200 W
Peak power - 400 W
Cooling - Convection
Advanced Functions - FIR Filters
DSP - 28/56 Bit
AD/DA Converter - 24 bit, 48 kHz
Controls - Ch. levels, MAIN level, PRESET button, Channel sens. LINK/MIX selection
Connectors - CH1: Combo CH2: XLR-F + jack 6,35mm (1/4”) AUX IN: mini-jack 3,5mm LINE OUT: XLR-M
Bluetooth ® - 5.0 stereo
Dimensions (W x H x D) - 310 x 524.5 x 280 mm [12.2” x 20.6” x 11”]
Weight - 11.3 kg [24.92 lb]
Cabinet - Polypropylene
